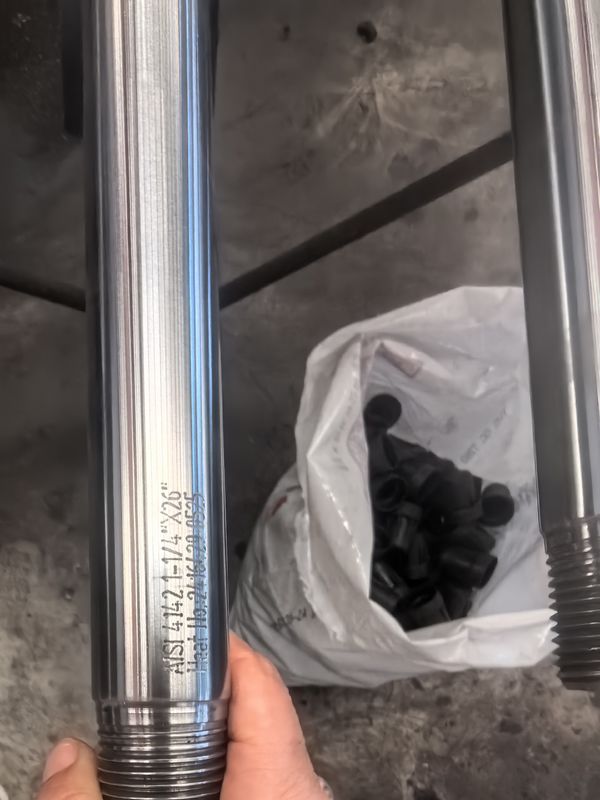

Name: Cold Rolling 4140 Hard Chrome Plated Piston Polished Steel Rod
Brand: Puyang Zhongshi Group Co., Ltd.
SKU: 1 1/4''
Price: 25 USD
Availability: InStock

Detalles del producto

Place of Origin: China

Nombre de la marca: ZS

Model Number: 1 1/4''

Condiciones de pago y envío

Minimum Order Quantity: 100

Precio: 25

Payment Terms: T/T

Supply Ability: 100000

Consiga el mejor precio

Detalles del producto

Descripción del producto

Resaltar:

Cold Rolling 4140 Hard Chrome Plated Piston Polished Steel Rod

Product Application of Polished Rod

The polished rod is a durable and high-quality product manufactured from high tensile strength alloy steel. It is designed for longevity and reliability, with a smooth surface that promotes efficient operation. The production of polished rods complies with API Spec 11B standards to ensure consistency and adherence to industry regulations.

There are two main types of polished rods available: regular grade D polished rods and end upsetting polished rods. Regular grade D polished rods are connected using polished rod couplings, while end upsetting polished rods are directly connected to sucker rods for specific applications.

Another type of polished rod available is the ultra-high tensile strength and corrosion-resistant variant. These polished rods are made of 20CrMo alloy steel and undergo heat treatment through quenching and tempering. The rod surface is further enhanced with a nickel-based alloy (Ni35) coating, providing superior resistance to corrosion and wear.

Specifications:
- Material: 20CrMo alloy steel, stainless steel rod
- Types: Regular polished rod, end upsetting polished rod
- Rod diameters: 1", 1-1/8", 1-1/4", 1-1/2"
- Lengths: 25', 26', and 30', with customization options available for other specifications.

ominal value	Rod body diameter D +0.127-0.254(+0.005-0.010)mm(in)	Length Lmm+/- 50mm (Lft +/-2in)	Thread nominal diameter mm(in)	mm (in) Outer thread shoulder outer diameter	Suitable sucker rod size mm (in)
29	28. 6 (11/8)	2438, 3353, 4877, 6707, 7315, 7925 (8, 11. 16. 22. 24 , 26)	24 (15/16) PR 27 (1 1/16) PR		16 (5/8) 19 (3/4)
29	28. 6 (11/8)rod-upset on one end	2438, 3353, 4877, 6707 , 7315, 7925 (8. 11, 16. 22 , 24 , 26)	24 (15/16 ) SR 27 (1 1/16 ) SR	31.8+0.127-0.254 (1.250+0.005-0.010) 38.1+0.127-0.254 (1.500+0.005-0.010)	16 (5/8) 19 (3/4)
32	31.8(1 1/4)	3353, 4877, ,6707,7315, 7925 , 9144, 10973 (11, 16, 22 . 24. 26, 30. 36)	30 (1 3/16 ) PR		22(7/8)
32	31.8(1 1/4)rod-upset on one end	3353, 4877, ,6707,7315, 7925 , 9144, 10973 (11, 16, 22 . 24. 26, 30. 36)	30 (1 3/16 ) SR	41.3+0.127-0.254 (1.625+0.005-0.010)	22(7/8)
38	38. 1 (1 1/2)	4877, 6707,7315, 7925. 9144. 10973 (16, 22. 24, 26, 30. 36)	35(1 3/8)PR		25(1)
38	38. 1 (1 1/2)rod-upset on one end	4877, 6707,7315, 7925. 9144. 10973 (16, 22. 24, 26, 30. 36)	40(1 9/16)SR	57.2+0.381-0.381 (2.250+0.015-0.015)	29(1 1/8)
